TYPE 3 ROTARY DIGITAL TRANSDUCER

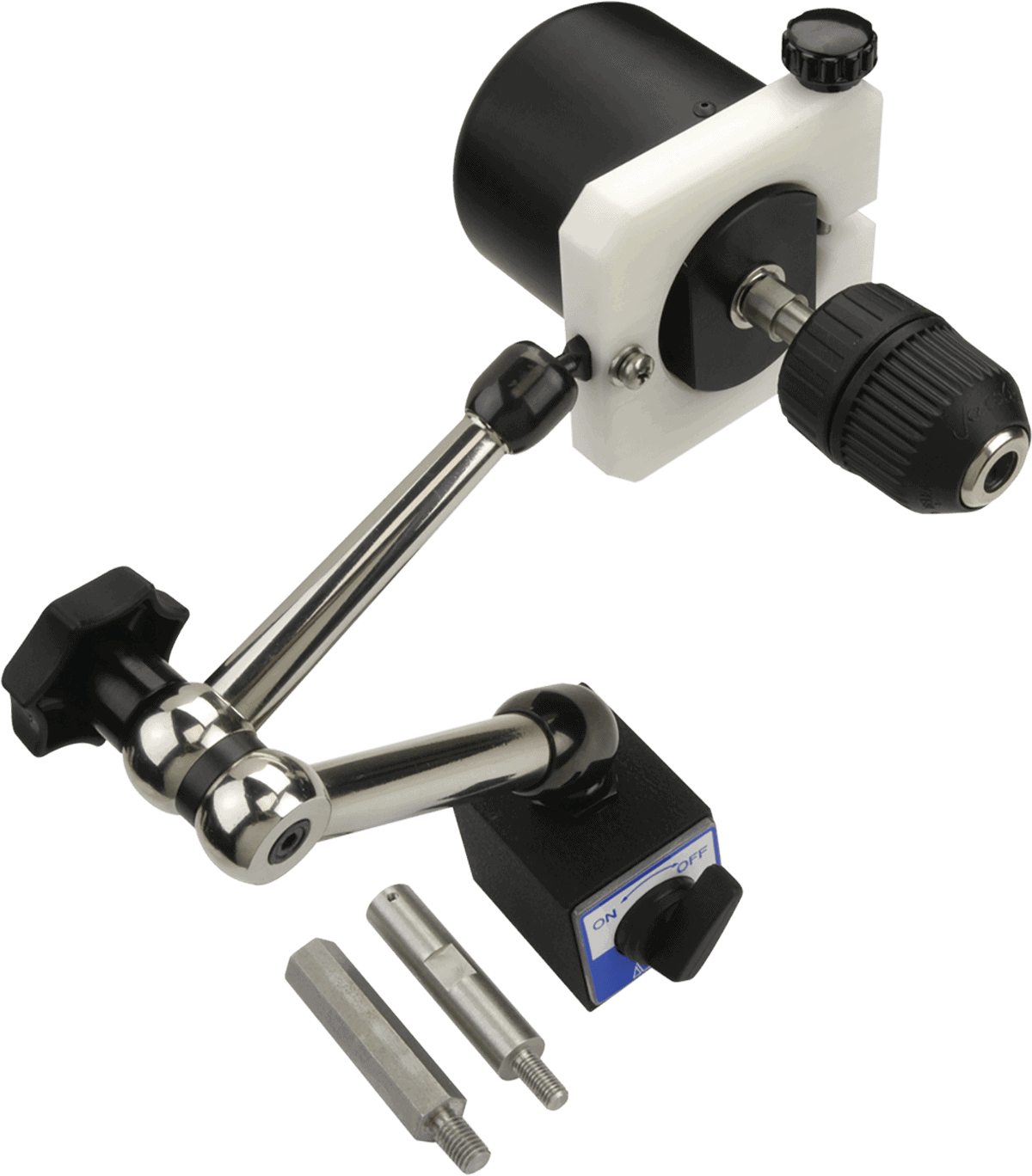

Digital rotary motion transducer with flex arm and magnet mount
Detect rotary position with a maximum velocity of 100 revolutions per second
Rotary transducers translate the rotary motion of a circuit breaker’s linkage shaft to the linear motion of the circuit breaker’s main contact.
Vanguard rotary transducers employ optical encoders that can detect rotary position with a maximum velocity of 100 revolutions per second. Vanguard offers three rotary transducers, each of which is furnished with a drill chuck adapter and two adapter shafts with 8mm and 10mm threading, respectively. The included accessories can be used to connect the transducers to a wide range of circuit breakers in the field.
CABLES
| Cable | Part Number |
|---|---|
| [8000-0104] Transducer Cable [ 25′ (7.62m) ] | 8000-0104 |
| [8000-0181] Transducer Extension Cable [ 25′ (7.62m) ] | 8000-0181 |
TECH SPECS
| PHYSICAL SPECIFICATIONS | See datasheet for full dimensions |
| PHYSICAL TRAVEL | 0-1,800 degrees |
| ACCURACY | 0.1% of reading ±0.36 degree |
| RESOLUTION | ±0.36 degree |
| VELOCITY | 100 rev/sec max |
| Specifications are valid at nominal voltage and ambient temperature of +25˚C (+77˚F). | |
PART #s
- 9091-UC [Rotary Transducer with Magnetic Mount]
