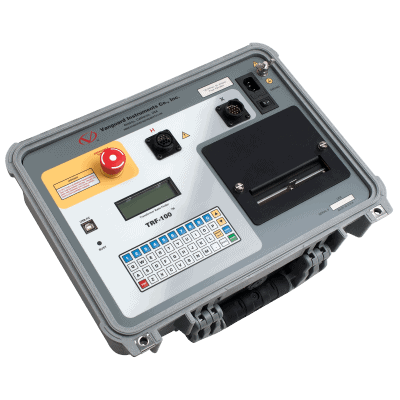

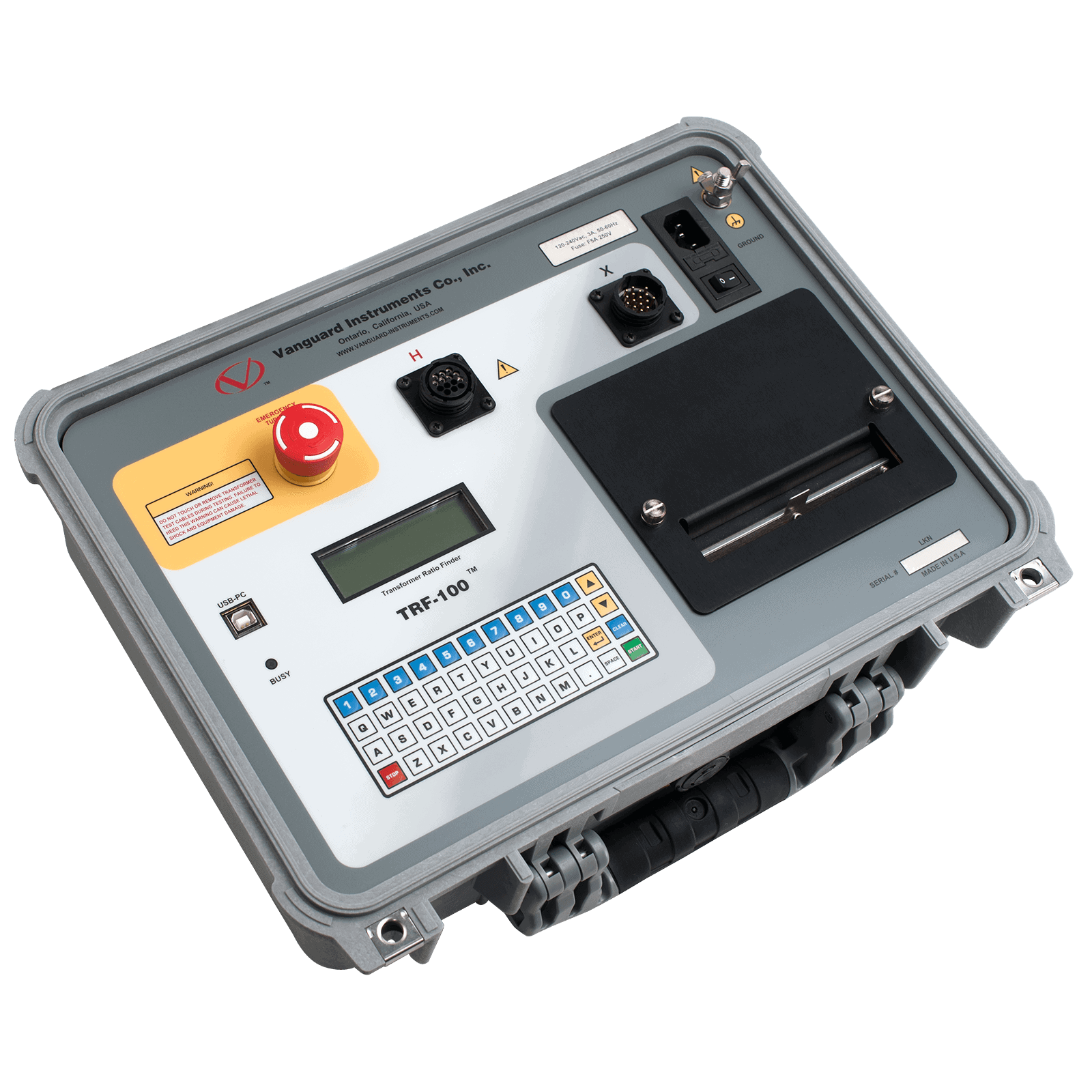

TRF-100
Automatic 100 Vac 3-Phase Transformer Turns Ratio Test
The TRF-100 is Vanguard’s third generation, microprocessor-based, automatic, three phase, transformer turns-ratio tester. This lightweight, portable unit is designed for testing transformers at utility power substations.
The TRF-100 determines the transformer turns-ratio using the IEEE C57.12.90 measurement method. The transformer turns-ratio (ranging from 0.8 to 50,000) is determined by precisely measuring the voltages across the unloaded transformer windings. To ensure accuracy, the TRF-100’s measuring circuitry self-calibrates before each measurement. It requires neither adjustment nor temperature compensation. The TRF-100’s turns-ratio measurement accuracy is 0.1% or better.
ALL VANGUARD TRANSFORMER TESTERS
FEATURES
- Ratio Range: 0.8 – 50,000 to 1
- Capable of detecting 130 different 3-phase transformer types defined by ANSI, IEC, and Australian standards
- 3 test voltages: 4Vac, 40Vac, and 100Vac
- Phase angle and excitation current measurement
- USB PC interfaces
- 4.5-inch wide thermal printer (optional)
CABLES
[8000-0005] USB Cable [ 6' (1.83m) ]
Cable Part Number: 8000-0005[8000-0009] H Single Phase Cable [ 15' (4.57m) ]
Cable Part Number: 8000-0009[8000-0010] H Extension Cable [ 25' (7.62m) ]
Cable Part Number: 8000-0010[8000-0011] X Single Phase Cable [ 15' (4.57m) ]
Cable Part Number: 8000-0011[8000-0012] X Extension Cable [ 25' (7.62m) ]
Cable Part Number: 8000-0012[8000-0013] H 3-Phase Cable [ 15' (4.57m) ]
Cable Part Number: 8000-0013[8000-0014] X 3-Phase Cable [ 15' (4.57m) ]
Cable Part Number: 8000-0014
TECH SPECS
| TYPE | Portable, lightweight, automatic 3-phase transformer turns-ratio meter |
| PHYSICAL SPECIFICATIONS | Dimensions: 17”W x 7”H x 13”D (43.2 cm x 17.8 cm x 33.0 cm) Weight: 14 lbs (6.4 kg) |
| INPUT POWER | 100 – 120 Vac or 200 – 240 Vac (selectable), 50/60 Hz, 3 Amps |
| MEASUREMENT METHOD | ANSI/IEEE C57.12.90 |
| TURNS-RATIO MEASURING RANGE | 0.8 – 50,000 to 1 |
| TYPICAL TURNS-RATIO ACCURACY | 4 Vac: 0.8 – 1,000 (±0.08%), 1,001 – 4,000 (±0.1%), 4,001 – 15,000 (±0.25%)
40 Vac: 0.8 – 1,000 (±0.05%), 1,001 – 4,000 (±0.1%), 4,001 – 15,000 (±0.25%), 15,001 – 20,000 (±0.4%), 20,001 – 50,000 (±0.5%) 100 Vac: 0.8 – 1,000 (±0.05%), 1,001 – 4,000 (±0.1%), 4,001 – 15,000 (±0.25%), 15,001 – 20,000 (±0.4%), 20,001 – 50,000 (±0.5%) |
| TEST VOLTAGES | 4 Vac @ 1.0A, 40 Vac @ 0.6A, 100 Vac @ 0.1A |
| CURRENT READING RANGE | 0 – 2 Amperes; accuracy: ±1mA, ±2% of reading (±1 digit) |
| PHASE-ANGLE MEASUREMENT | 0 – 360 degrees; Accuracy: ±0.2 degree ( ±1 digit) |
| DISPLAY | back-lit LCD screen (20 characters by 4 lines) |
| viewable in bright sunlight and low-light levels | |
| PRINTER | Optional built-in 4.5-inch wide thermal printer |
| COMPUTER INTERFACE | USB PC interface |
| INTERNAL TEST RECORD STORAGE | stores 1,000 complete transformer test records, each including nameplate voltage, turns-ratios, excitation current, and winding phase angle |
| INTERNAL TEST PLAN STORAGE | stores up to 128 transformer test plans |
| PC SOFTWARE | Windows®-based transformer turns-ratio analysis software is included with purchase |
| SAFETY | designed to meet IEC 61010 (1995), UL 61010A-1, and CSA-C22.2 standards |
| TEMPERATURE | Operating: -10˚ to 50˚ C (15˚ to +122˚ F) Storage: -30˚ C to 70˚ C (-22˚ to +158˚ F) |
| HUMIDITY | 90% RH @ 40°C (104°F) non-condensing |
| ALTITUDE | 2,000 m (6,562 ft) to full safety specifications |
| CABLES | 15 ft (4.6m) single phase cable set, 15 ft (4.6m) 3-phase cable set, 25 ft (7.6m) extension cable set, USB cable, power & ground cables, cable bag |
| OPTIONS | shipping case, transformer load tap-changer remote control device, 30′ (9.14 m) single and 3-phase H and X leads |
| WARRANTY | One year on parts and labor |
| Specifications are valid at nominal voltage and ambient temperature of +25˚C (+77˚F). Last updated on April 14, 2016 |
|
PART #s
- 9117-UC [TRF-100 Unit and Cables]
- 9117-PR [TRF-100 built-in thermal printer option]
- 9124-UC [Load Tap Changer Remote Control Box]
