Protection Testing Accessories
Maximize your protection testing program
Maximize the capabilities of your Doble power system simulator.
Protection testing programs can vary from team to team and company to company.
That’s why Doble offers a comprehensive series of accessories so you can maximize the capabilities of your Doble power system simulator.
Options include amplifiers, communication devices, transducer/metering test options, distribution accessories and more.
This way you can choose the accessories that make sense for your budget and business requirements.
COMMUNICATION

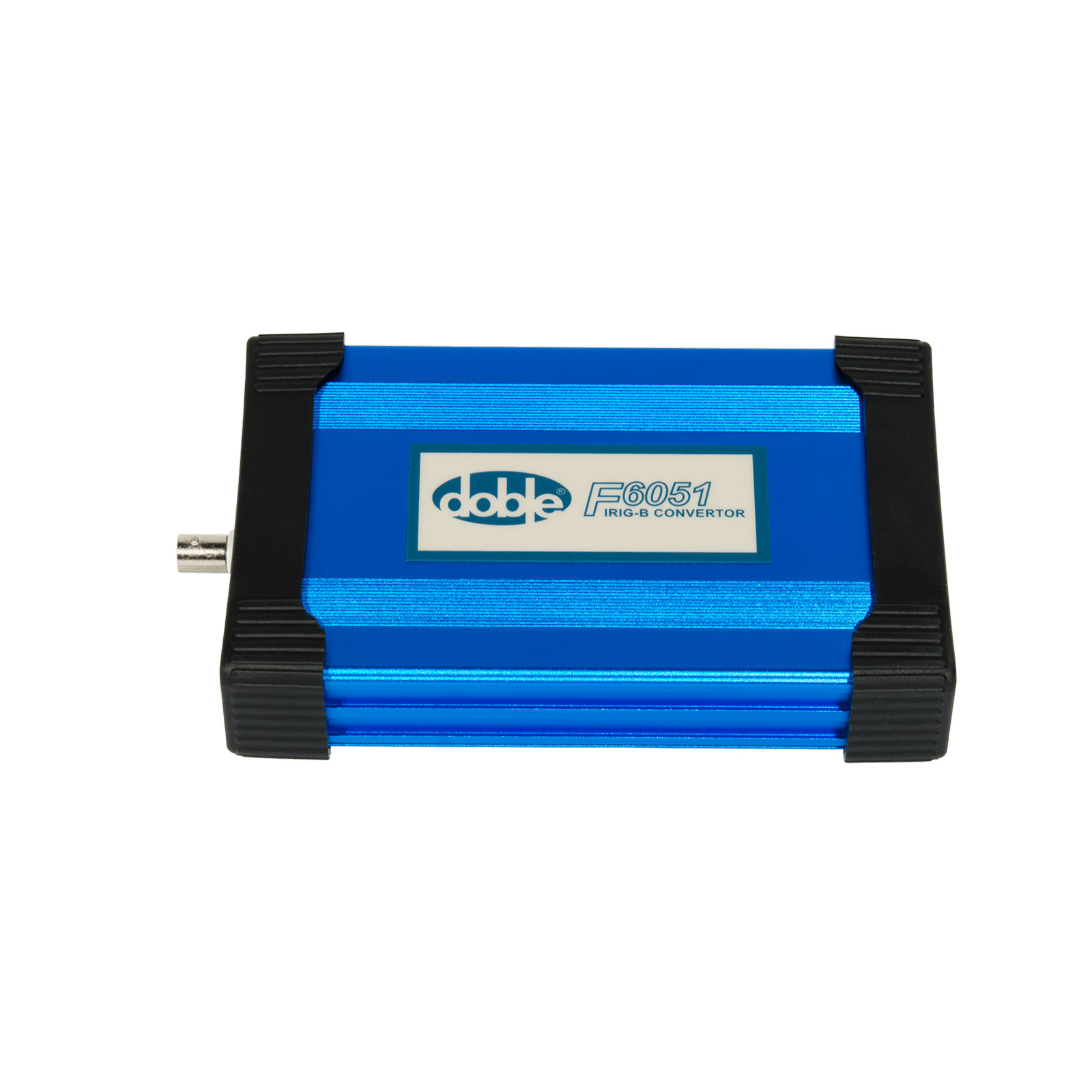

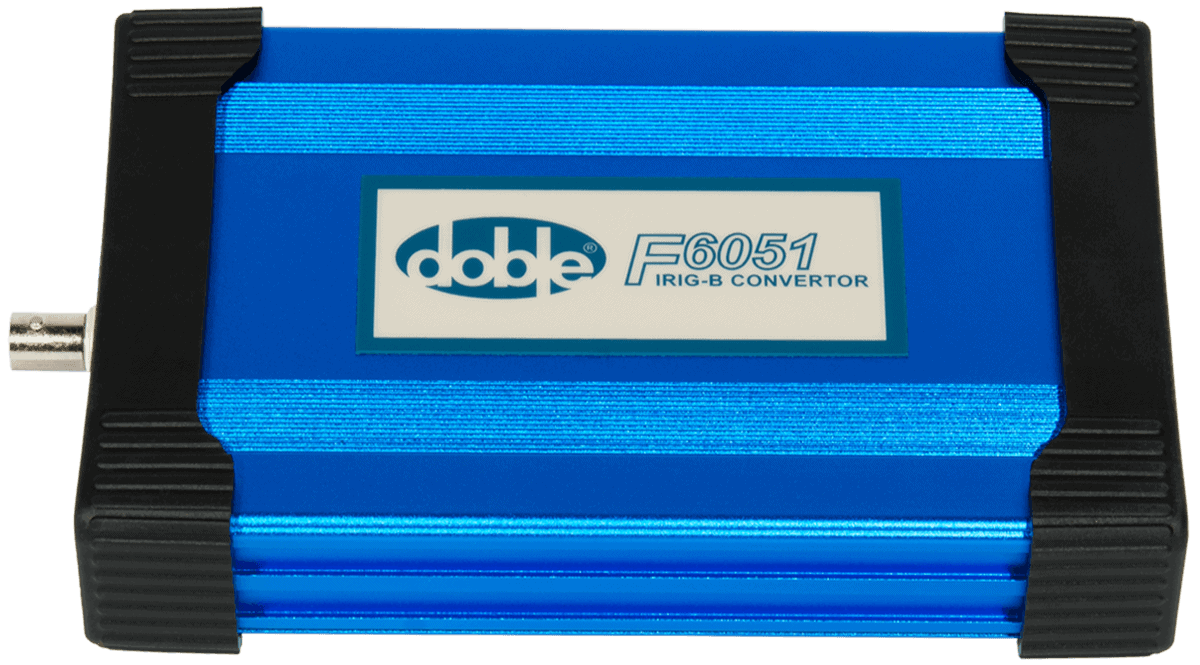

F6051 IRIG-B Converter
The F6051 is a compact IRIG-B time protocol converter designed to meet industry and security standards by providing precise time synchronization. It is designed for interior use when you are unable to run a satellite antenna cable outside due to CIP compliance concerns. It is ideal for locations where an IRIG-B source is available.

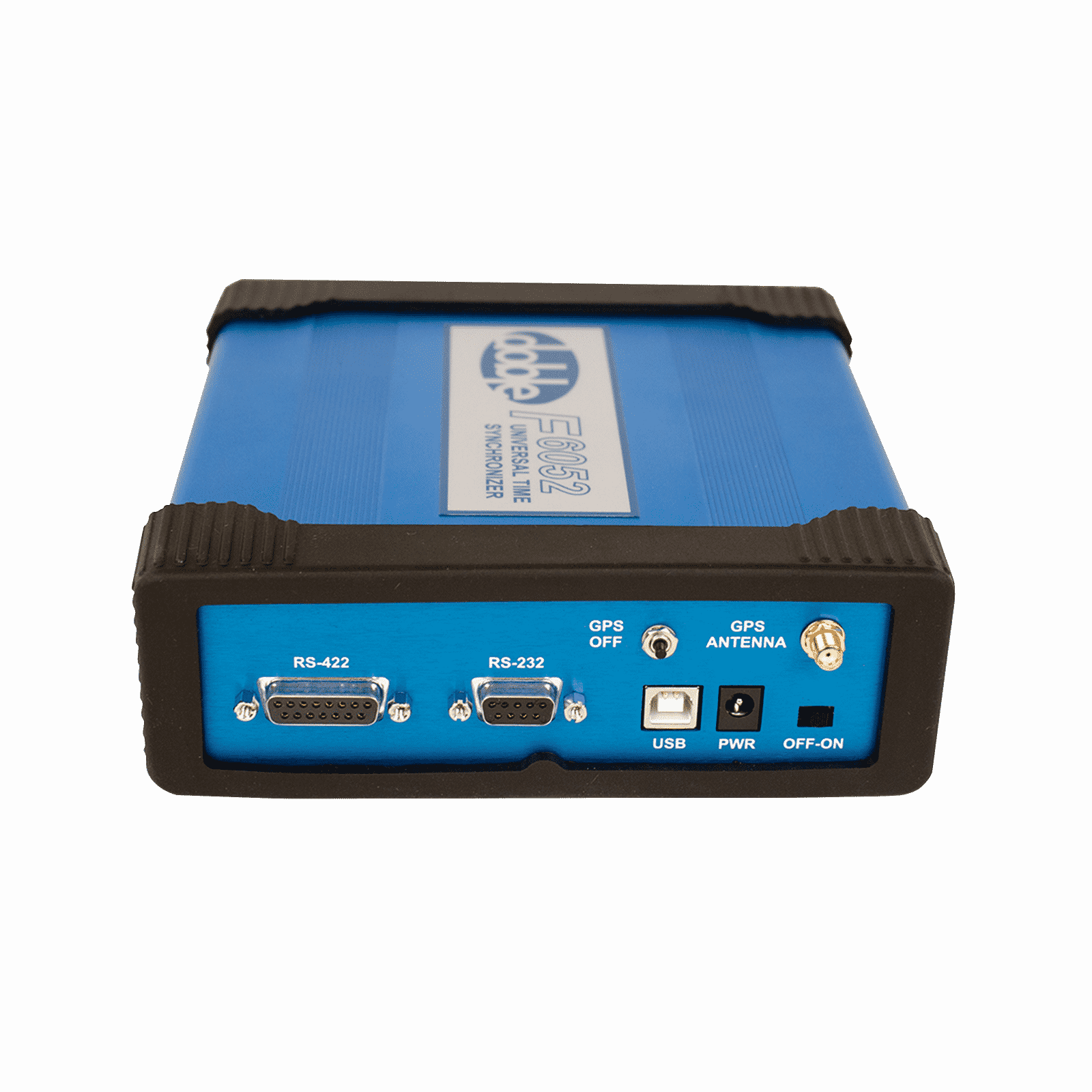

F6052 Universal Time Synchronizer
The F6052 is a portable station clock capable of time synchronization for PMU, IEC 61850, end-to-end scheme testing & telecommunication coordination delays. It is ideal for use in hydro dams, security restricted substations, nuclear power plants, test laboratories, metropolitan areas and other locations with limited sky availability.

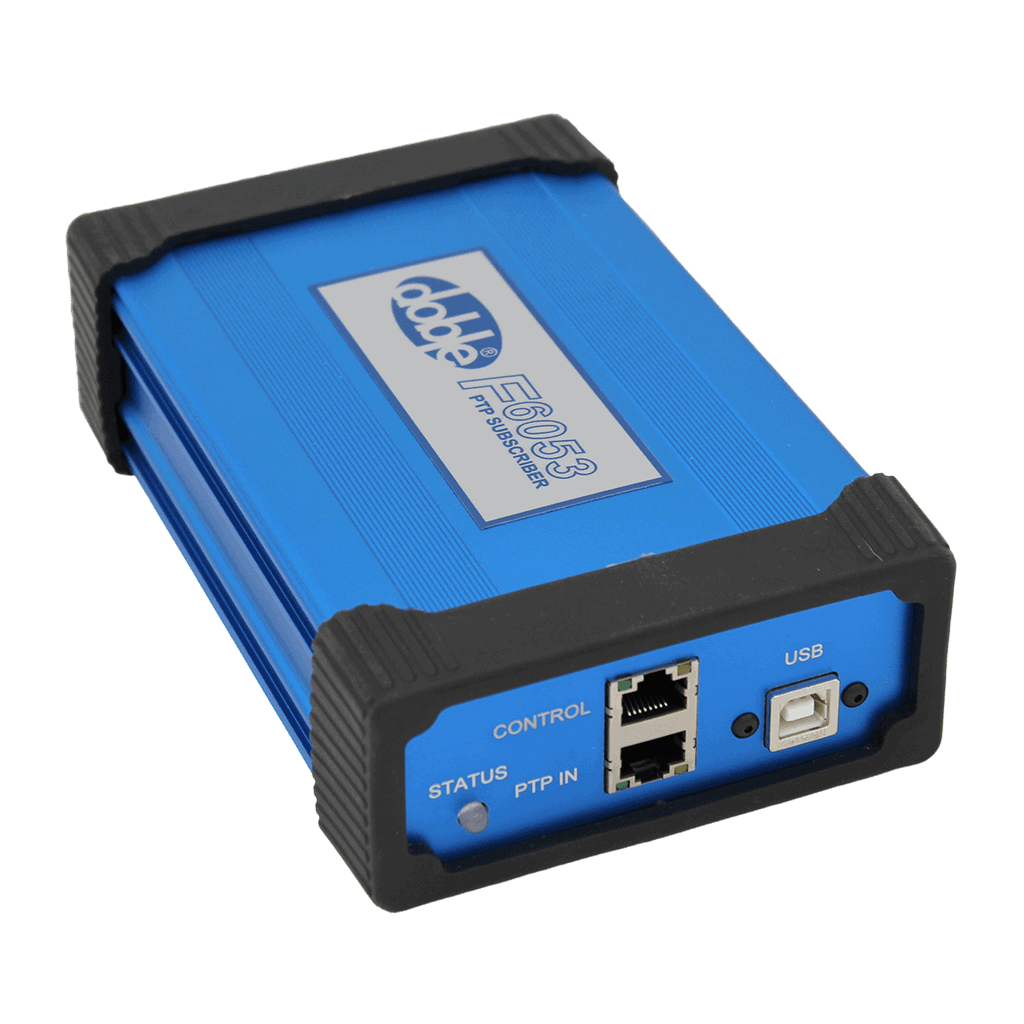

F6053 PTP Subscriber
The F6053 is a PTP subscriber for Doble F6150e/sv, F6300e and F6350e, and older F6150 products. Use the F6053 to subscribe to a Grand Master Clock (GMC) time reference during digital test operations. The F6053 used in combination with your Doble F6 power system simulator keeps precise time with IEDs as required for peer-to-peer network communications like IEC 61850 GOOSE messaging and Sampled Values data streaming.

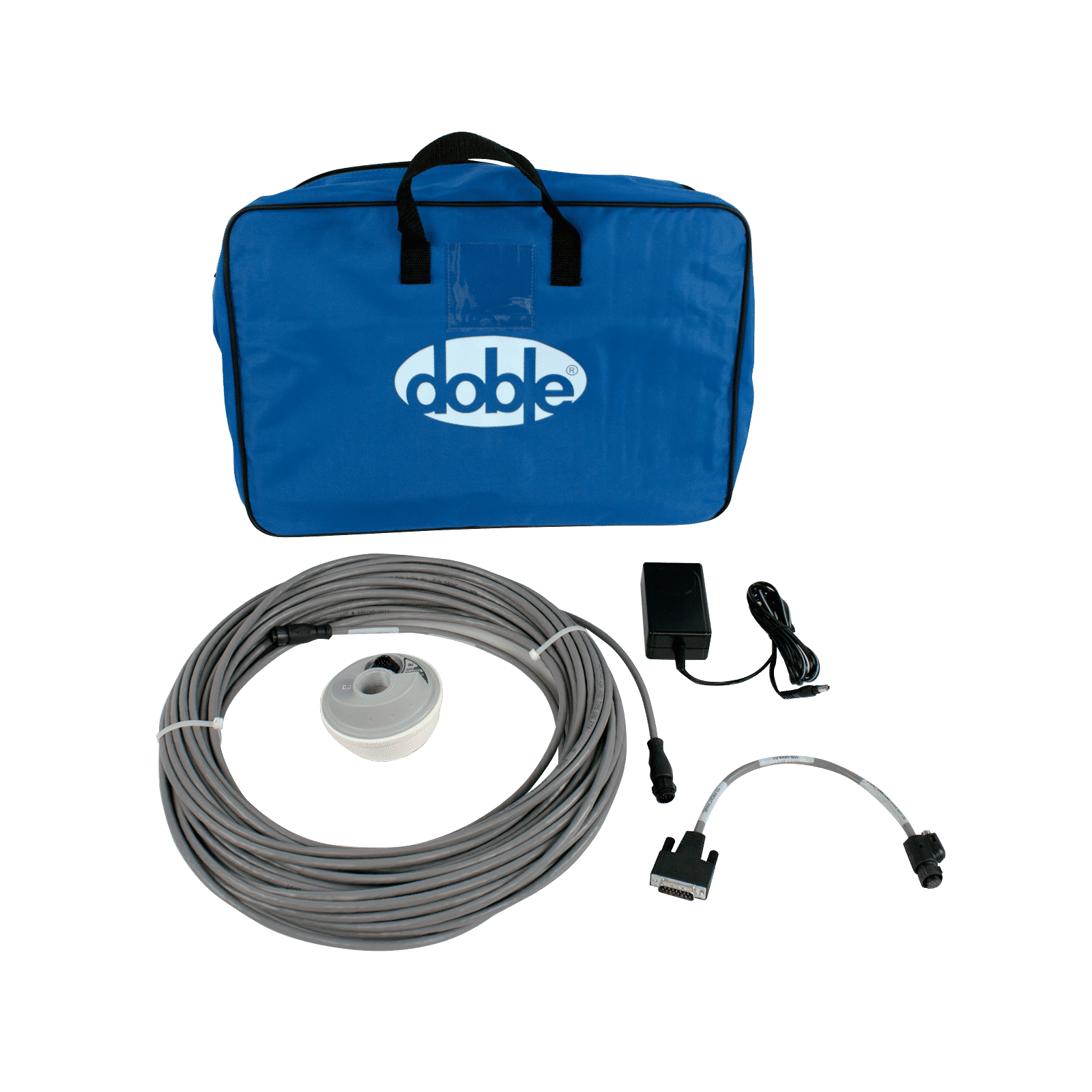

F6895 GPS Receiver/Antenna
The F6895 option includes a GPS antenna/receiver with 100ft. cable. It is used with the F6885 GPS Receiver Interface to provide a GPS signal to the test instrument.
TRANSDUCER/METERING

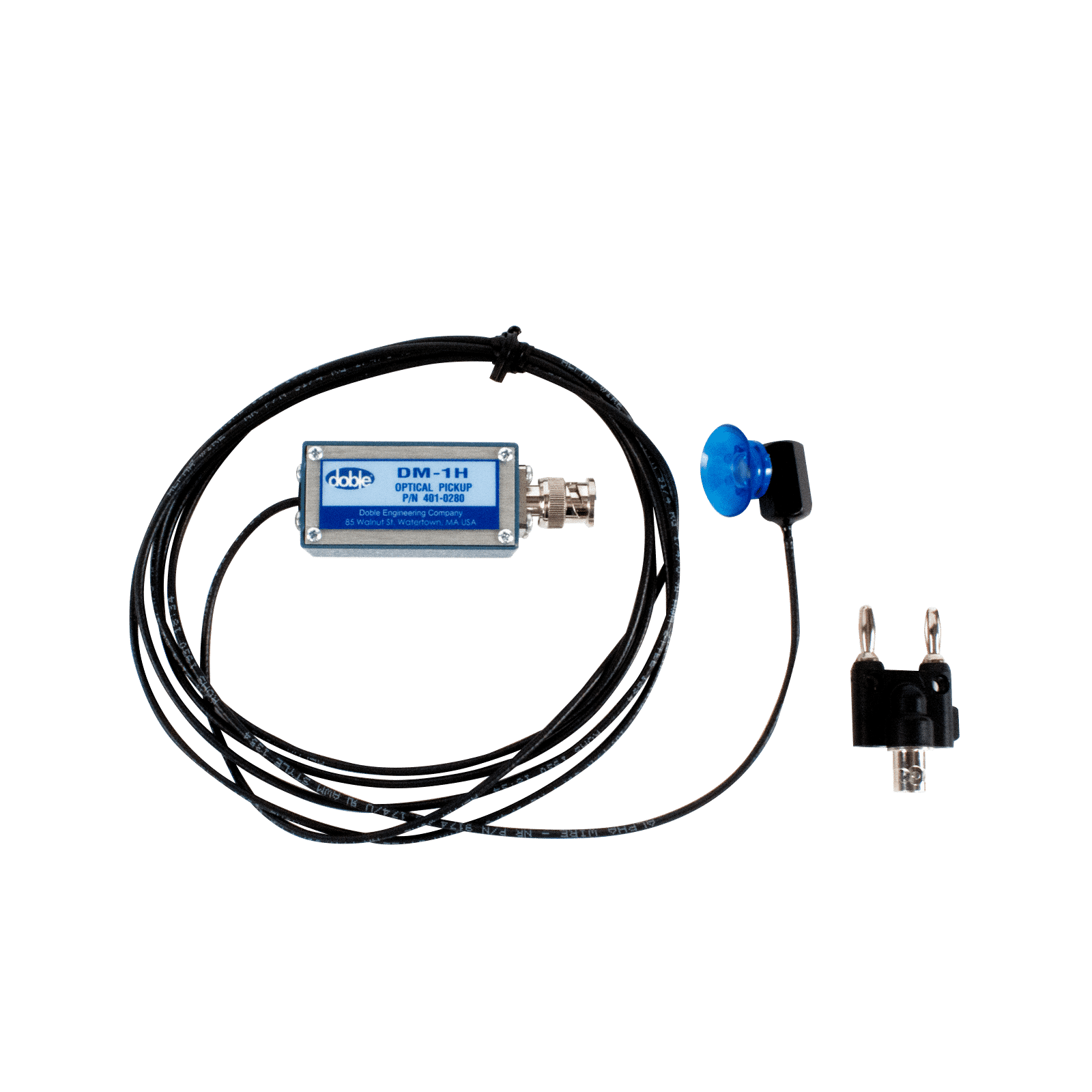

F6071 Infrared Optical Pickup
The F6071 Infrared Optical Pickup is used to sense infrared pulses from device LEDs. It allows automated calibration of solid state watthour, varhour and vahour meters.
F6072 Visible Light Optical Pickup
The F6072 Visible Light Optical Pickup is available for those solid state meters that have a visible calibration LED.
F6073 Meter Disk Sensor
The F6073 Meter Disk Sensor is a suction mount reflective pickup assembly used to sense the disk rotation of an induction type meter.
DISTRIBUTION

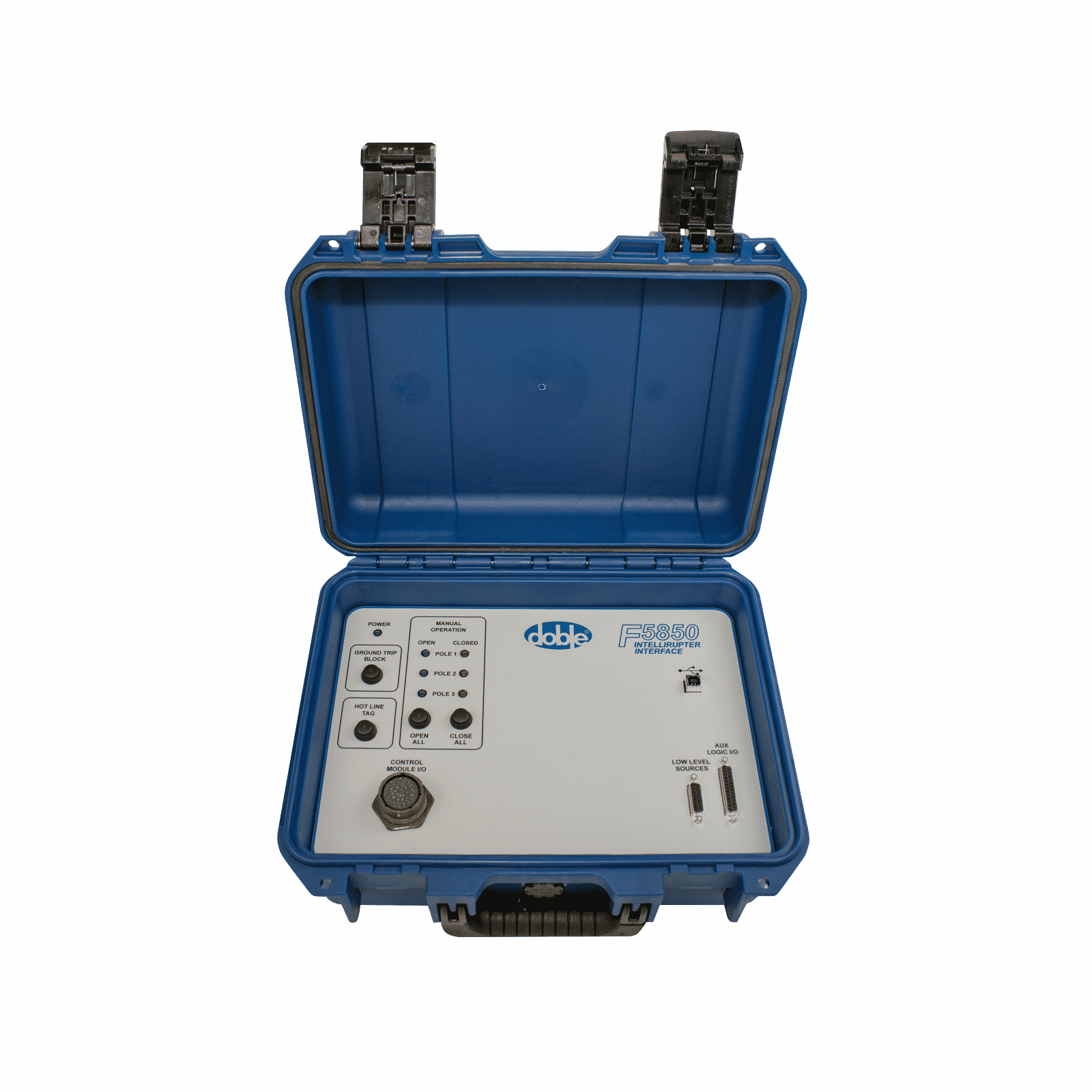

F5850 Testing Interface for the IntelliRupter® PulseCloser® Fault Interrupter
Use the F5850 to effectively test and verify correct operation of the S&C IntelliRupter® Fault Interrupter. The F5850 is a portable test interface that is used in combination with your power system simulator to test setting and logic schemes of the IntelliRupter® Control Module.

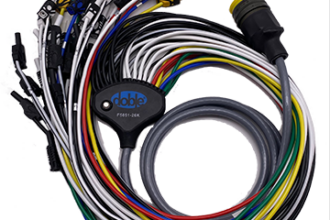

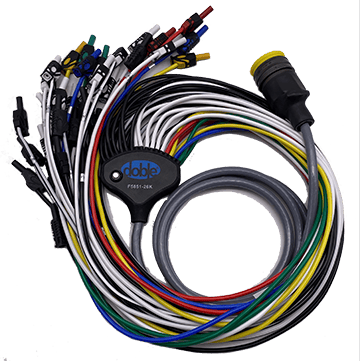

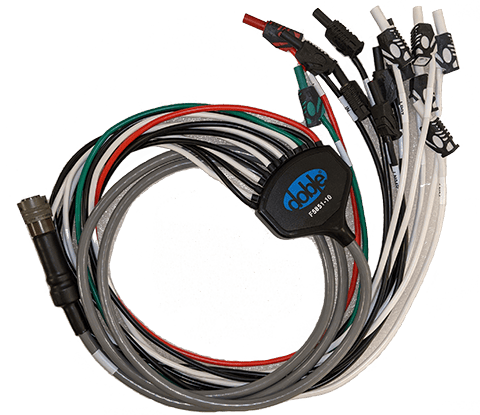

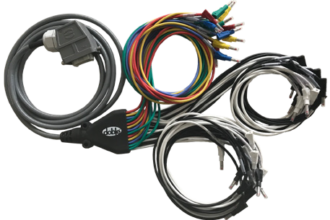

F5851 Recloser/Controller Interface Cables

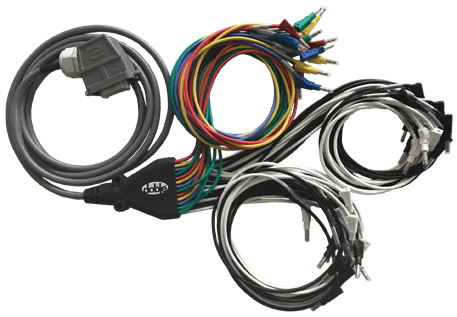

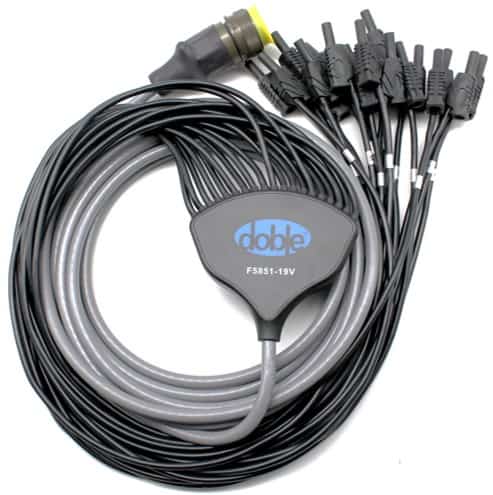

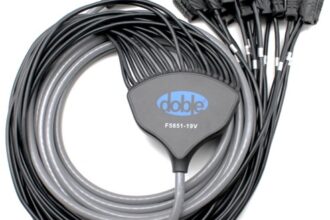

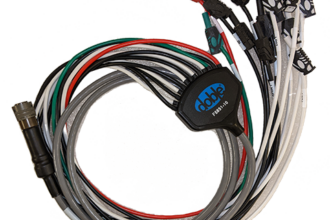

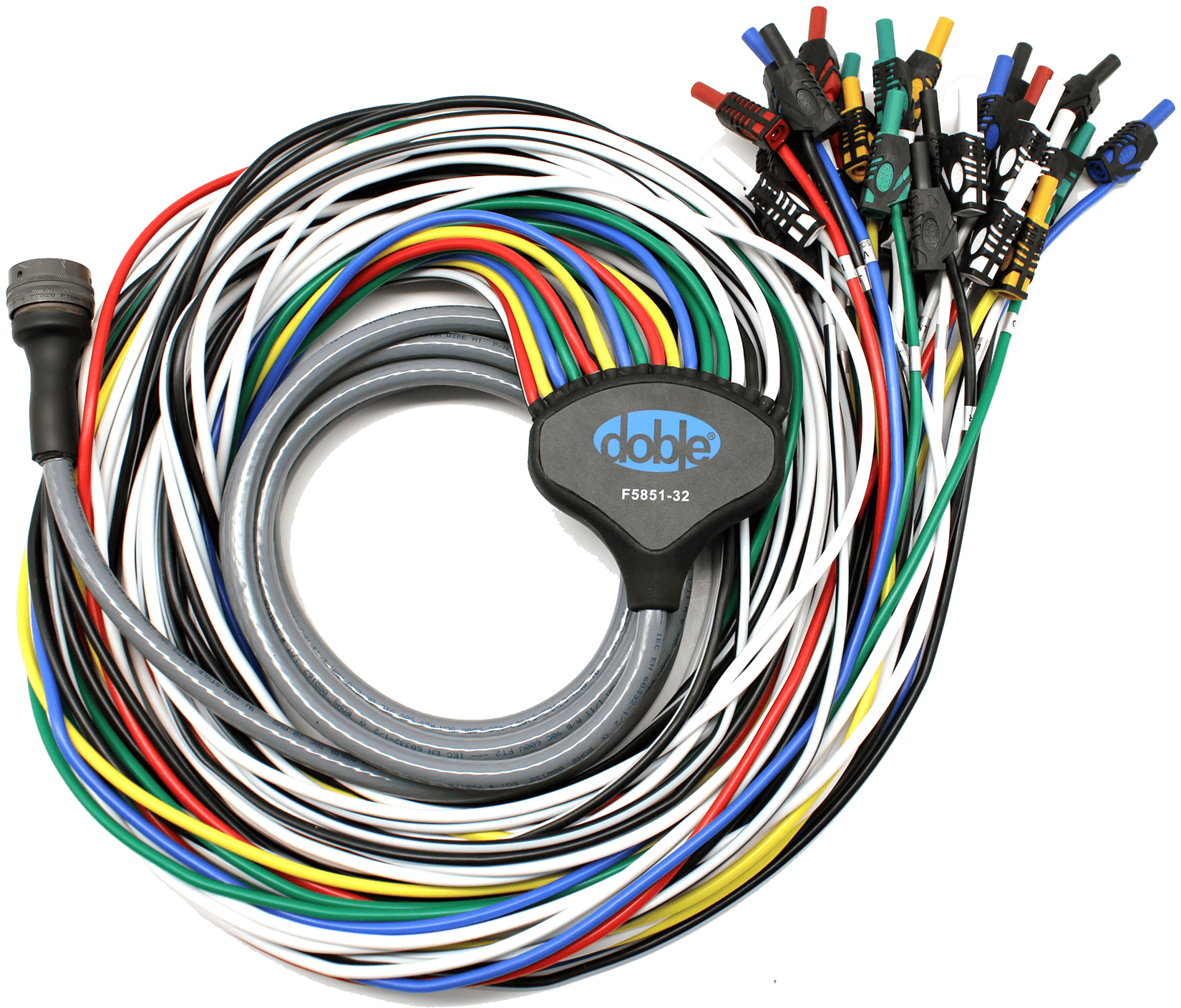

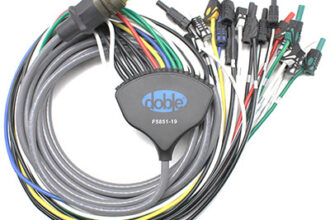

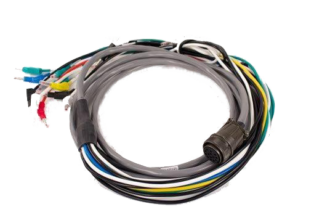

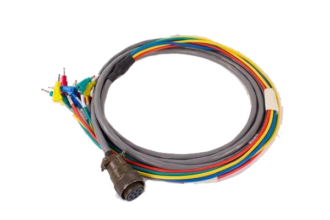

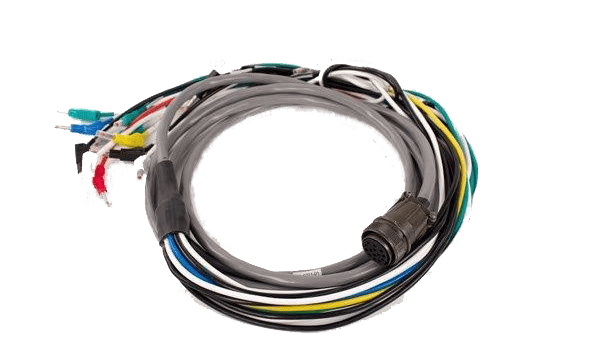

Be ready with cable sets that are compatible with the different pin-outs of reclosing and sectionalizing equipment in your distribution system. The F5851 line of specialty test cables give you the connectivity you need with your F6150e/sv Power System Simulators to test control units in your recloser/sectionalizer fleet. (See Resources tab for F5851 brochure.)
FIELD CALIBRATION

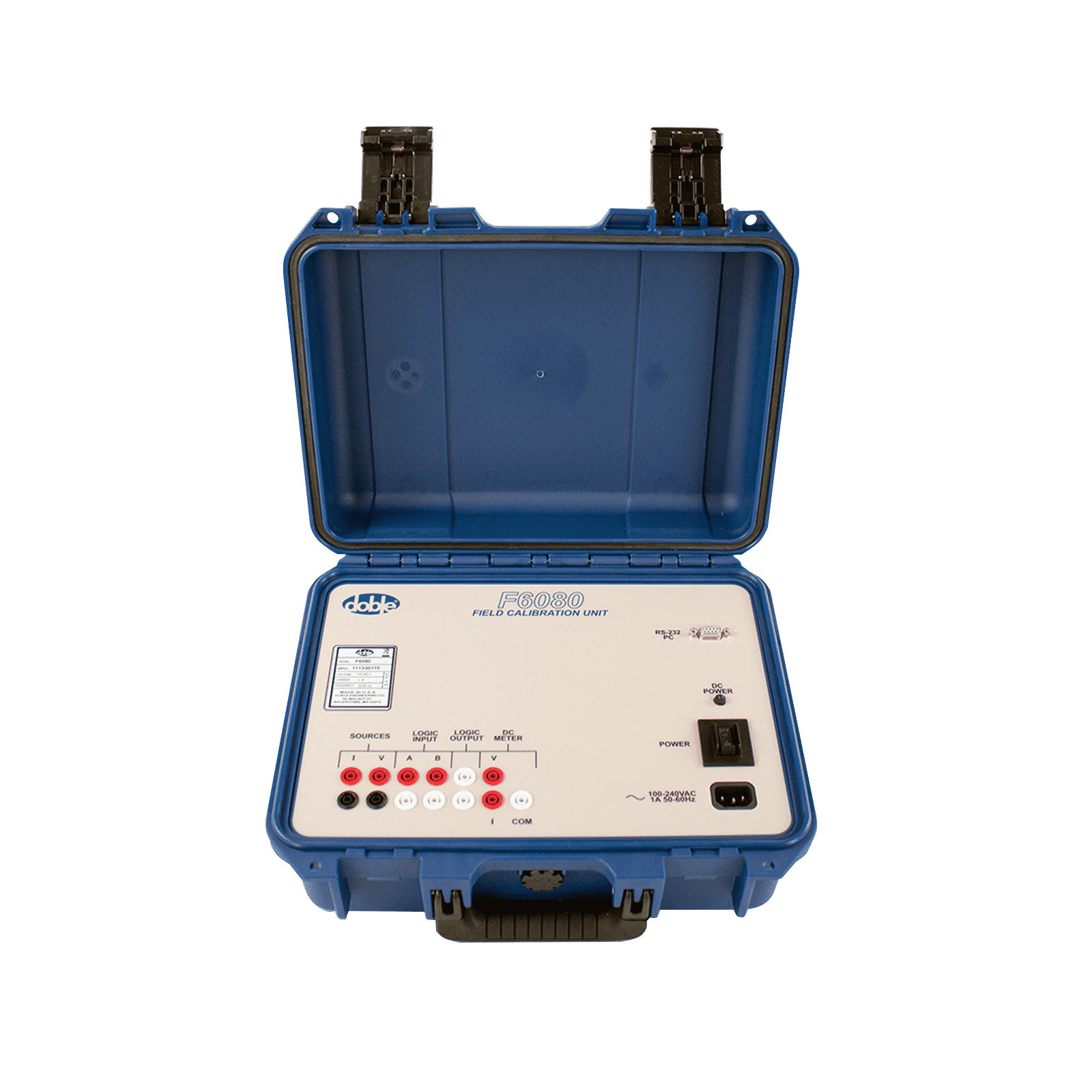

F6080 Field Calibration Unit
Properly calibrate your power system simulator with the F6080 Field Calibration Module, which helps save time and money by giving you the capability to calibrate your test system in the field. The F6080 provides automatic recalibrations of voltage and current sources for all ranges. It also checks and calibrates logic inputs and outputs. Protection Suite Software is used to test the calibration. The use of a 10 kHz filter is recommended for frequency measurements; this filter can be ordered from Doble.
AMPLIFIERS

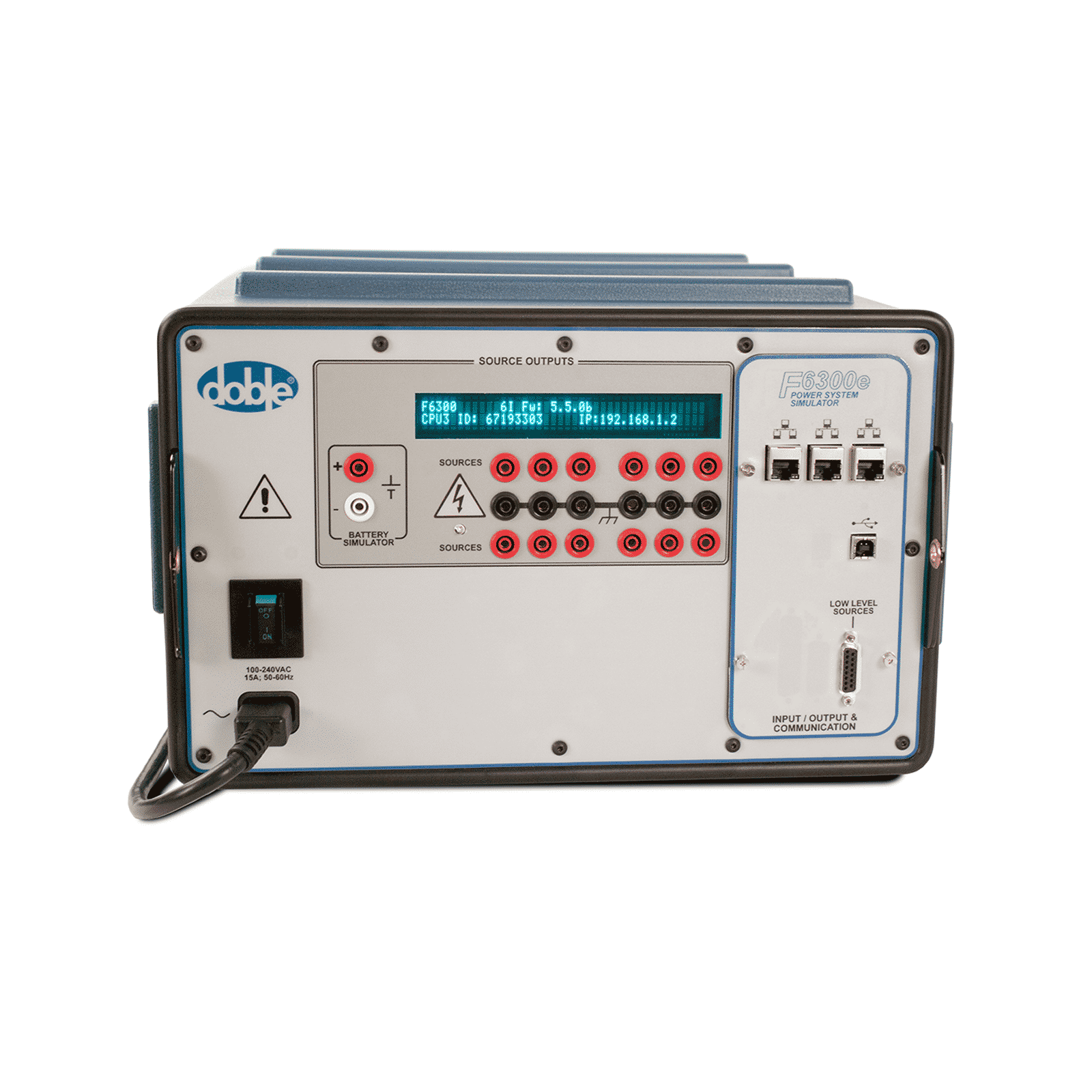

F6300e External Amplifier
Use Doble’s F6300e External Amplifier with your Power System Simulator for critical high burden relay testing and to perform necessary system modeling with 3rd party software. This amplifier features 12 enhanced current sources.
F6350e External Amplifier
Use Doble’s F6350e External Amplifier with your Power System Simulator for critical high burden relay testing and to perform necessary system modeling with 3rd party software. This amplifier features 6 voltage and 6 enhanced current sources.
OTHER

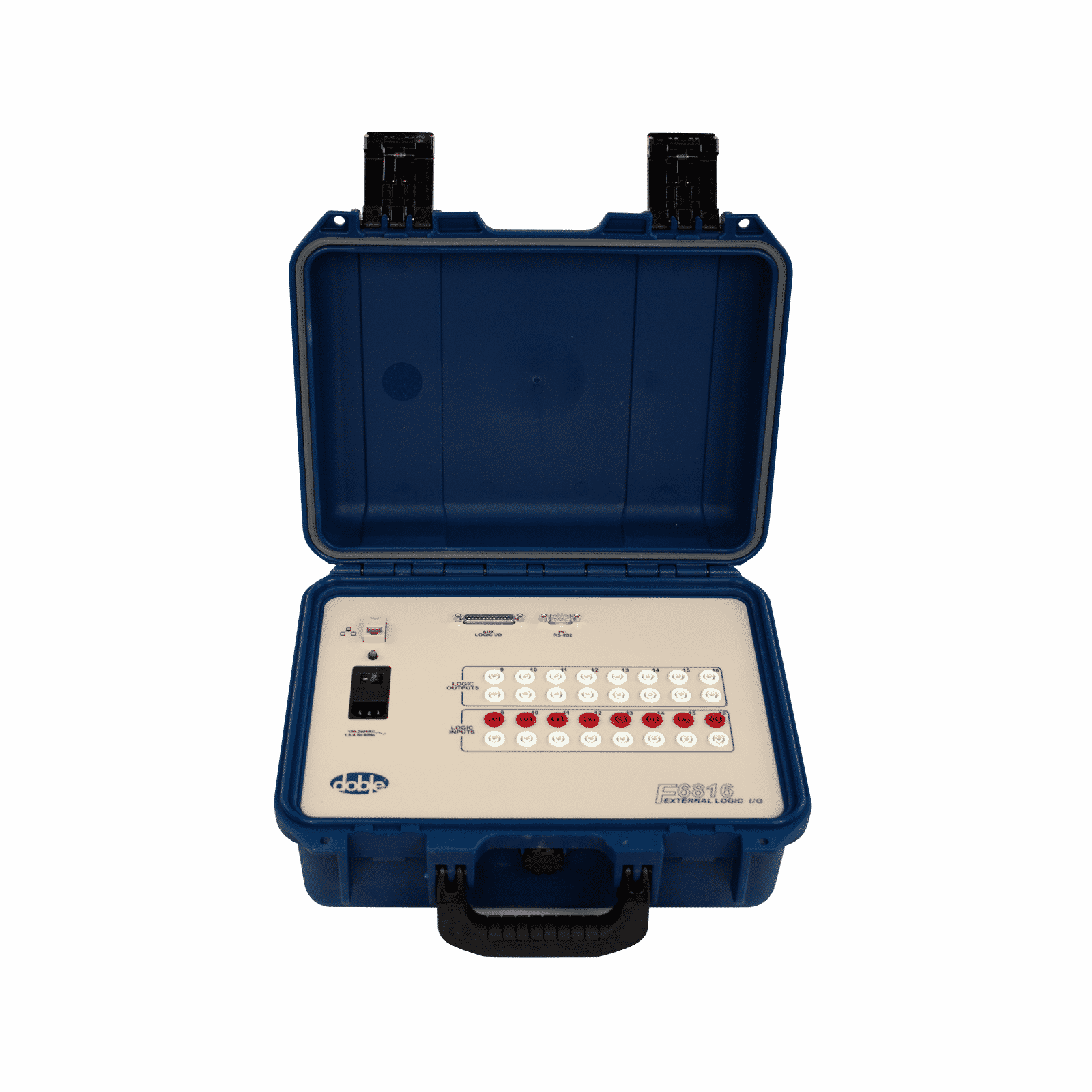

F6816 External Input/Output Unit
Double the number of inputs and outputs you can use for testing with the F6816, a unit that provides eight additional inputs and 8 additional outputs. With 16 inputs and outputs you can monitor and control a large number of relay contacts. This is helpful in elaborate end-to-end tests and dynamic testing of protection schemes.

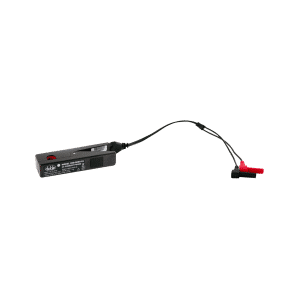

Compact AC Current Clamp
Doble’s Compact AC Current Clamp helps you perform precise protection testing in wiring tight circuits. This highly accurate current probe is used with your Doble protection series test instruments (and the F6820 AIM option) for monitoring and recording parameters.
RESOURCES
Amplifers
Communication
- F6051 datasheet
- F6052 datasheet
- F6053 datasheet
- Doble Solutions for Testing SEL-T401L Relays: Application Note
Distribution
Field Calibration
Other
- Compact AC Current Clamp datasheet
- Doble Protection Software Overview
- Doble Protection Testing Accessories Brochure
