Myrkos

Myrkos View

Provides on-site transformer condition assessment based on the (highly accurate) DGA results from the Myrkos instrument.

It is a standalone application available at no additional charge to Myrkos instrument users and provides simple access to available sample gas data monitored by Morgan Schaffer’s PPM Report. Use the Myrkos View to connect to the PPM report database and view historic samples, diagnostic condition assessments, and trends for specific assets.

Connects Quickly

1. Open Myrkos View
2. Select equipment to analyze
3. Select a Transformer Type and Oil Type to generate accurate assessments in Diagnostics.

Simple Data Display

Data is organized simply and displayed in four separate tabs: samples, diagnostics, extended diagnostics, and trends.

Samples Display

The Samples tab displays available sample data in a simple table, sorted by date.

Diagnostics Display

The Diagnostics tab displays the main gases and condition assessments for each sample using diagnostic methods: Duval Triangles and Pentagon, IEC ratios, Rogers Ratios and Key Gas. It also indicates the condition level based on key gases, as indicated in IEEE C57.104-2008 standard.

Trends Display

The Trends tab displays data for the gases you select in a single chart. To accommodate multiple gases displayed on one chart, the Y axis uses a logarithmic scale.

Easy Data Export

Myrkos View does not save data; however, it does allow users to export data. Sample data and related condition assessments can be exported in CSV format and plotted charts can be exported in PNG format.

System Requirements

1. Microsoft® Windows 7 SP1 or later.
2. Microsoft .Net 5 Desktop Runtime (https://dotnet.microsoft.com/en-us/download/dotnet/thank-you/runtime desktop-5.0.13-windows-x64-installer)
3. Compatible only with Morgan Schaffer PPM Report
4. Easy to install. No prerequisites. No license. No password. No frills.

DGA Diagnostic Tools Comparison Chart

Multiple Languages

The Myrkos View can be used in a variety of languages. Make a language selection directly in the interface.

For translated versions of the User Guide, please contact us.

Myrkos portable gas analyzers

Myrkos MicroGC technology is combined with our proprietary Shake Test® Method, a variation of ASTM D3612-02 Method C, also described in the international standard IEC 60567. The Myrkos instrument is available in a Field Package and a Lab Package:

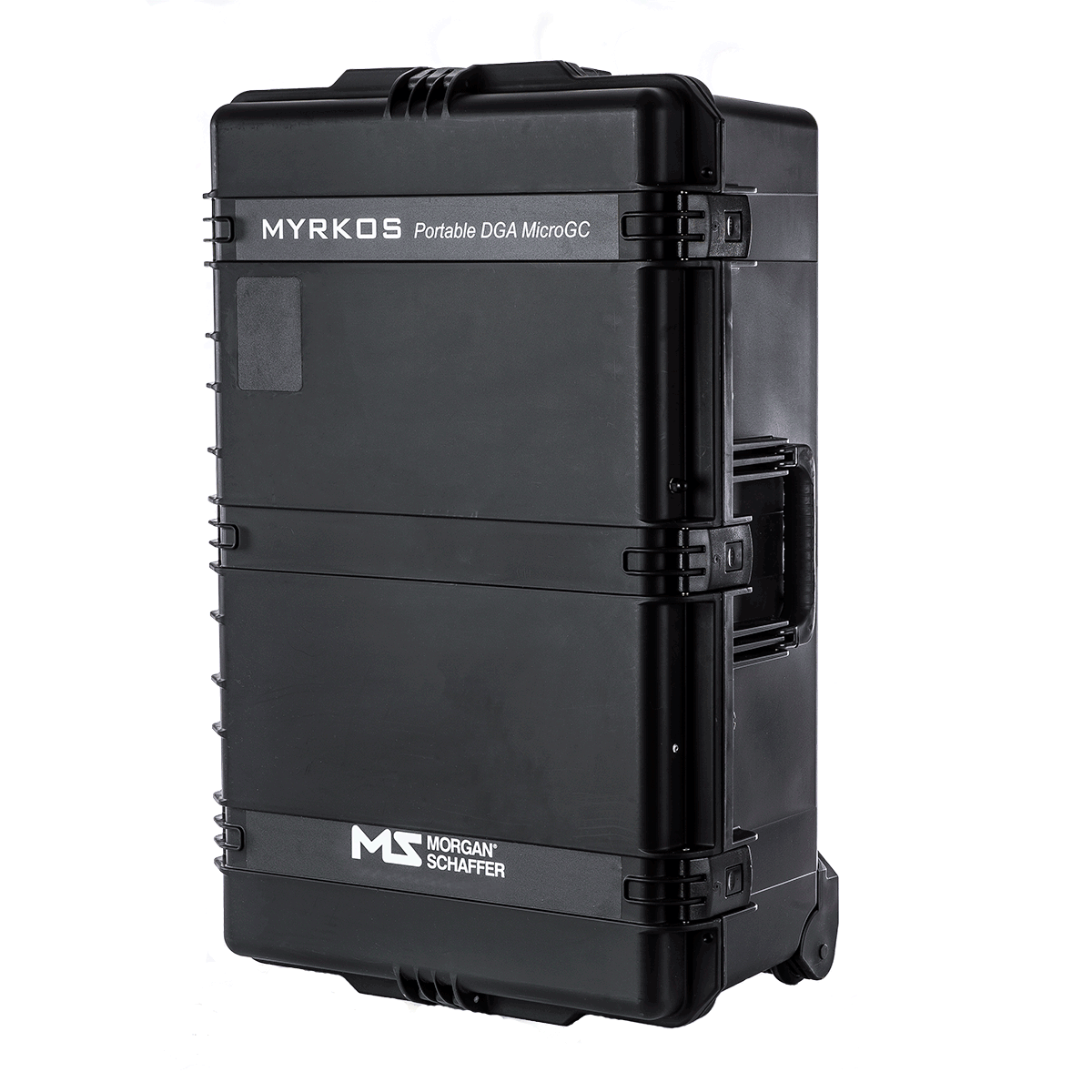

Myrkos Field Package Built for predictive maintenance, the Myrkos Portable DGA MicroGC comes with a wide variety of accessories appropriate to all circumstances. Clients can choose between two configurations: Field or Lab, or create their own package according to their needs. The Myrkos Field Package is ideal for remote site work. It features a watertight, rugged carrying case with retractable handle and wheels, a field module, and a Shake Test syringe carrying case. The extreme duty carrying case is designed to hold Myrkos and all the accessories required to perform DGA in the field, including the Myrkos Portable Controller. Easy to use and with a full range of features, the Myrkos Field Package will meet your current and future needs. Features All-in-one rugged carrying case Cordless operation with seven hours’ autonomy Li-ion rechargeable battery with state of charge indicators Ready-to-use miniature portable controller Removable carrier gas module for practical refilling 40% increased carrier gas module capacity Built-in O2-N2 extraction gas port Benefits Maximize operator productivity from site to site Easy to set up and operate on site or on the go Simplify internal cross-training Versatile data management Extended operation between carrier gas refills Less consumables

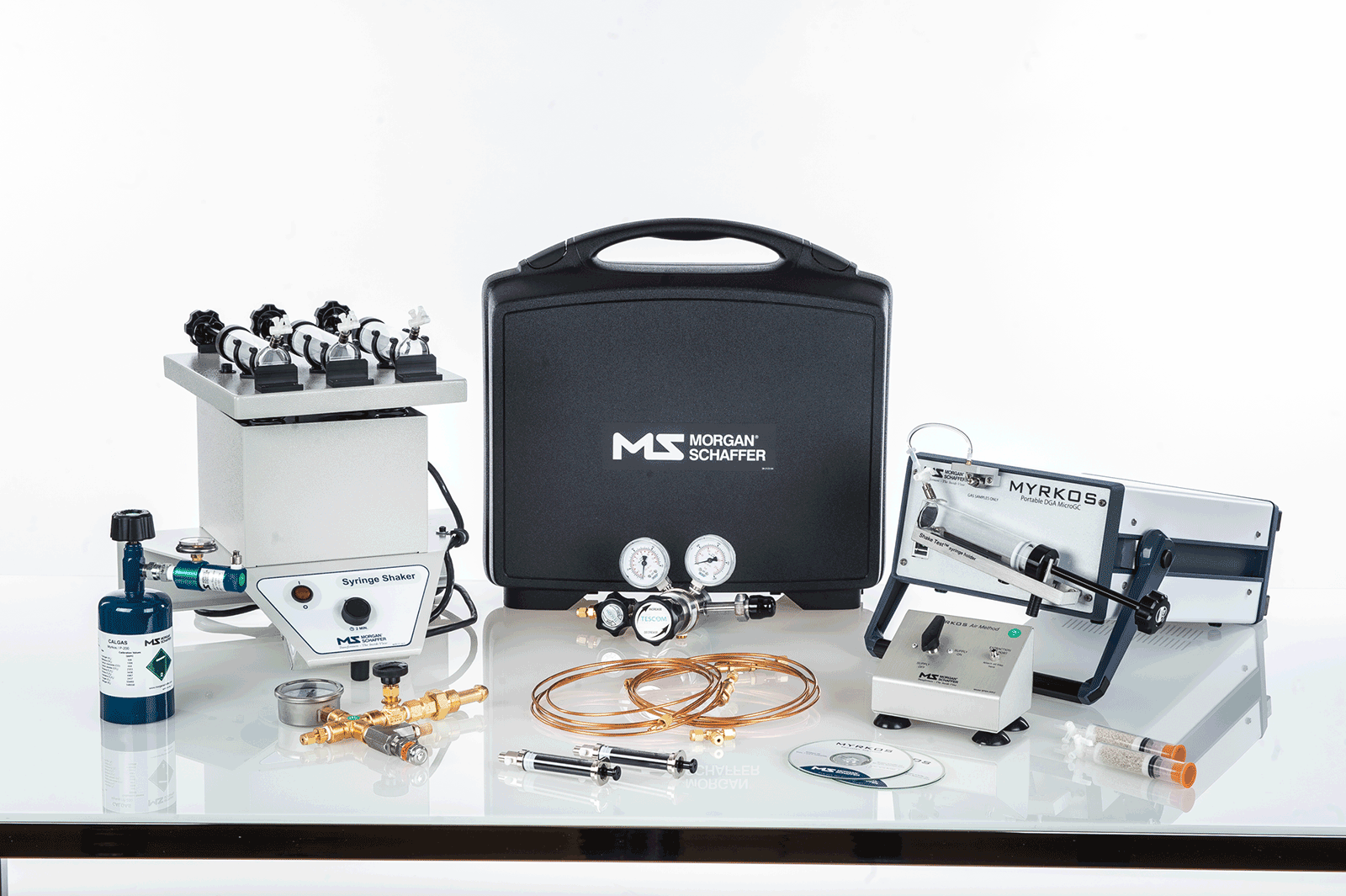

Myrkos Lab Package The Myrkos Lab Package offers the powerful combination of our Myrkos DGA MicroGC with a Syringe Shaker to deliver enhanced performance and sample throughput. Supplied with PPMreport™ and optionally with Morgan Schaffer’s new MS Oil LIMS web-based application, the Myrkos Lab Package provides an integrated solution to generate and manage DGA results, and to transform them into useful transformer diagnoses. Myrkos’s unequalled speed, precision and accuracy will enable your laboratory to use its resources optimally and to operate at the lowest possible cost per sample. Features Compliant with ASTM D3612-02 and IEC 60567 Chromatography engine Automated Shake Test® method using the innovative Syringe Shaker Generate DGA one-pager reports in PDF format Export data to third party advanced diagnostic software Benefits Maximizes laboratory DGA analysis throughput Recognized sample separation and detection technology Integrates easily into any laboratory QMS and standard proceduresTrustworthy results

• Myrkos Brochure – English
• Myrkos Instrument technical specifications
• Myrkos View Brochure – English
• Myrkos Field Lab Package technical specifications
