F6150e

Power System Simulator

Versatile protective relay tester for testing relays and schemes

This power system simulator performs the simplest through the most complex tests. Meeting all your protective relay testing needs, the F6150e is available in different configurations.

Whether you need to test a specific component or test an entire scheme, the F6150e is the proven solution to assess protection system performance.

KEY FEATURES

Performs standard relay calibration and verification testing of high burden and microprocessor relays
Analog testing of 1A and 5A protection devices
Performs state simulation and transient testing
Tests 0.2-class metering CTs and transducers
Implements end-to-end testing of communications-based schemes with GPS time syncing
Maximum of 12 sources (six voltage, six current) configurable for bench testing and proof-of-concept testing for complicated relaying schemes
Delivers full VA power with resistive, inductive and capacitive loads at maximum current rating (6×35, 3×70, 1×210 amps)
Control all sources from a tablet device for basic, manual protection testing

BENEFITS

Select from a number of protective relay tester models that feature varying power levels and complexity. Choose the best solution according to your testing and budgetary requirements.
Rugged construction and proven state-of-the art design provide laboratory accuracy with uncompromising field performance

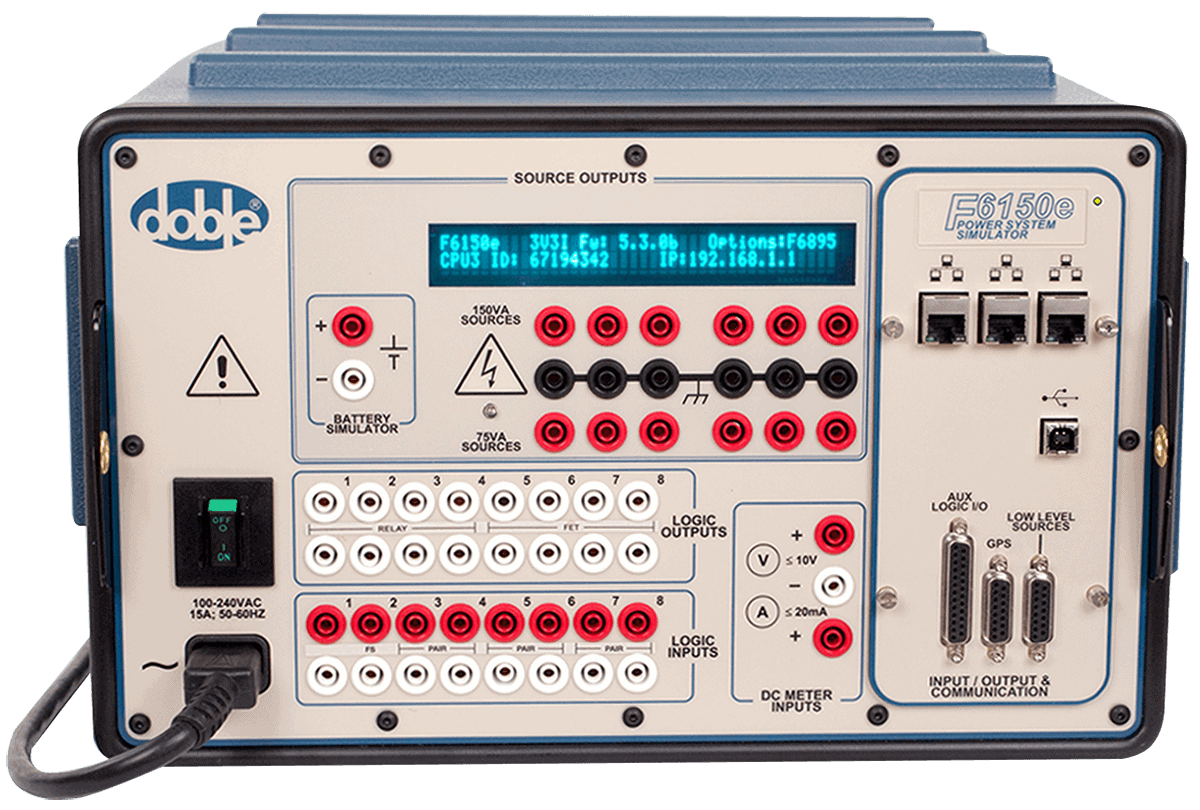

Convenient front-panel display indicates active voltage/current amplitudes and phase values during testing
High-precision measurements for energy meter and transducer testing

SOFTWARE

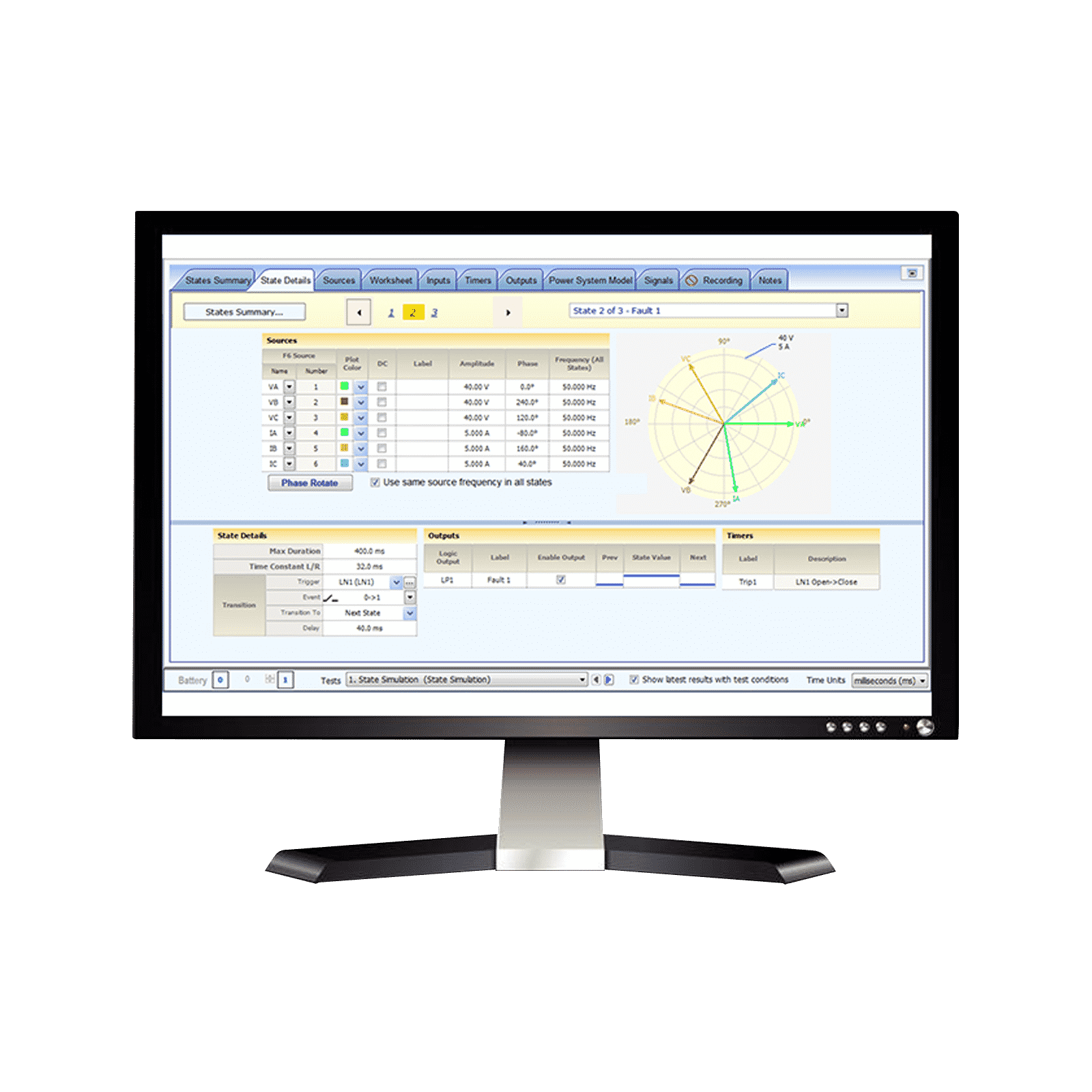

Protection Software

What types of protection testing functions do you need? Which types of devices are you testing?

Doble provides a complete range of software solutions for all types of applications. Perform manual and automated testing on all types of protective devices and schemes – and organize this critical information in databases with robust reporting capabilities needed to meet your testing practices and regulatory requirements. Customize the types of software solutions you need throughout your organization.

RTS | Protection Suite | F6TesT | PowerBase
