EZCT-2000C
Automated 2 kV Current Transformer Test Set with IRM and Burden Tests
Increases productivity & saves time during commissioning
The EZCT-2000C is Vanguard’s third-generation microprocessor-based current transformer test set. Designed specifically for CT testing, the EZCT-2000C has the following outstanding features that can greatly increase productivity and save time during the commissioning stage:
- Performs CT excitation, current-ratio, polarity, and phase angle tests
- Measures insulation resistance and winding resistance of the CT secondary windings
- Measures the CT’s load burden
- Standalone or computer-controlled via USB or Bluetooth wireless interface
The EZCT-2000C’s test leads can be connected to all the CT output terminals, and the complete CT test can be performed automatically without any operator intervention.
ALL VANGUARD CURRENT TRANSFORMER TESTERS
FEATURES
- Performs CT excitation, current-ratio, polarity, and phase angle tests
- Measures insulation resistance and winding resistance of the CT secondary windings
- Measures the CT’s secondary burden
- Test record header information including company, substation name, circuit ID, manufacturer, CT serial number, operator name, and test record-comments
- Built-in 4.5-inch wide thermal printer
- Plot Multiple Saturation Curves
- Stores up to 128 CT test plans and 140 test records internally
- USB, Bluetooth, and USB Flash drive interface
CABLES
[8000-0005] USB Cable [ 6' (1.83m) ]
Cable Part Number: 8000-0005[8000-0006] RS-232C Cable [ 6' (1.83m) ]
Cable Part Number: 8000-0006[8000-0016] Power + Ground Combination Cable]

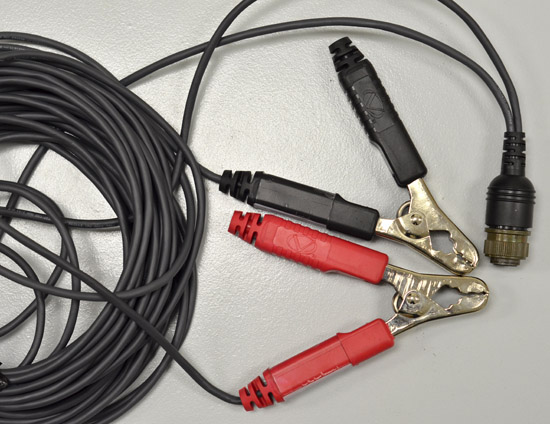

Cable Part Number: 8000-0016[8000-0105] H Cable Set (Metal Type) 35' (10.67m) ]

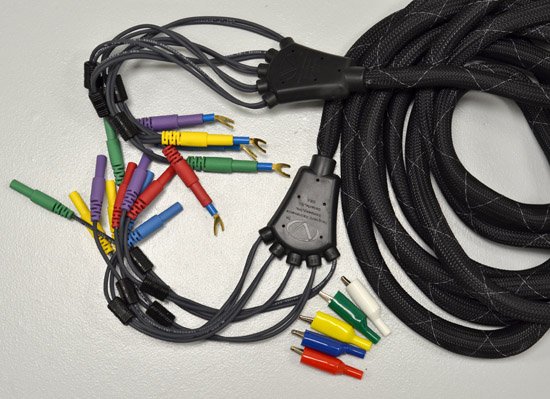

Cable Part Number: 8000-0105[8000-0108] X Cable Set [ 20' (6.10m) ]

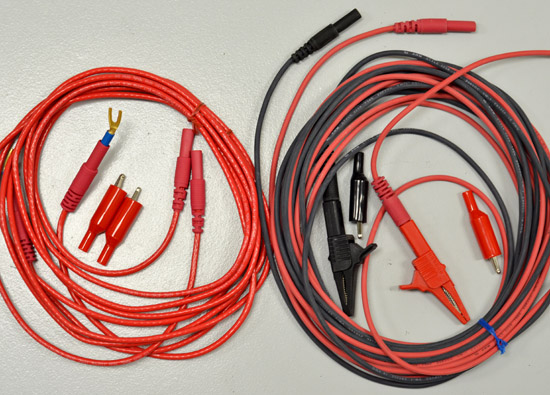

Cable Part Number: 8000-0108[8000-0109] Megger Cable Set + Current Cable Set Combo [ 20' + 8' ]

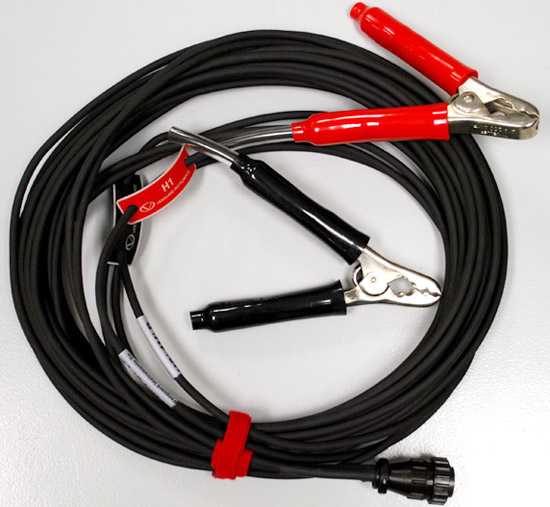

Cable Part Number: 8000-0109[8000-0143] EZCT H Cable Set [ 35' (10.67m) ]

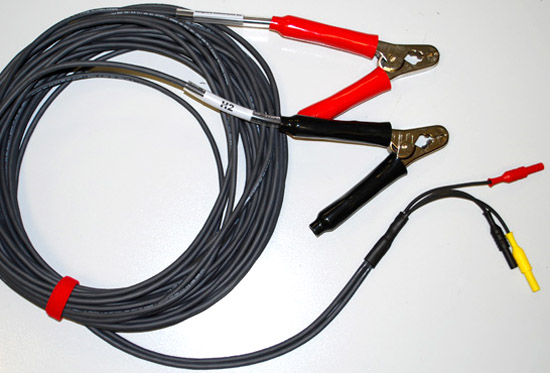

Cable Part Number: 8000-0143[8000-0157] EZCT H Cable Set (with Banana Jacks) [ 35' (10.67m) ]
Cable Part Number: 8000-0157
TECH SPECS
| TYPE | Portable current-transformer test set |
| PHYSICAL SPECIFICATIONS | 19″W x 13″H x 16″D (48.3 cm x 33cm x 40.1 cm); Weight: 73 lbs (33.1 kg) |
| INPUT POWER | 100 – 120 Vac or 200 – 240 Vac (factory pre-set), 50/60 Hz |
| MEASUREMENT METHOD | ANSI/IEEE C57.13.1, and ANSI/IEEE C57.12.90 |
| TEST OUTPUT VOLTAGES | 0 – 50 Vac @ 10A max 0 – 300 Vac @ 10A max 0 – 500 Vac @ 5A max 0 – 1200 Vac @ 1.2A max 0 – 2000 Vac @ 1A max |
| CURRENT SOURCE | 1 – 20A @ 0 – 15 Vac |
| CURRENT SOURCE DISPLAY | Test current and current on-time |
| VOLTAGE READING RANGE | 0 – 2,200 Vac; Accuracy: ±1.0% of reading, ±1 V |
| CURRENT READING RANGE | 0 – 10A; Accuracy: ±1.0% of reading, ±0.02A |
| CT CURRENT RATIO RANGE | 0.8 – 999: ±0.1% 1000 – 1999: ±0.3% 2,000 – 4,999: ±1% 5,000 – 10,000: ±1.5% |
| PHASE ANGLE MEASUREMENT | 0 – 360 degrees; Accuracy: ± 1.0 degree) |
| RESISTANCE READING RANGE | 100 micro-ohms – 30 ohms; Accuracy: 2% of reading, ± 1 count, ± 10 micro-ohms |
| INSULATION RESISTANCE READING RANGE | 2 Mega-ohms – 500 Mega-ohms; Accuracy: 3% of reading, 500 – 1000 Vdc test voltage |
| DISPLAY | Back-lit LCD Screen 240 x 128 pixels; 114mm x 64mm Viewable in bright sunlight and low-light levels |
| PRINTER | Built-in 4.5-inch wide thermal printer |
| COMPUTER INTERFACES | One USB port and Bluetooth wireleass interface |
| EXTERNAL DATA STORAGE | One USB Flash drive interface port (Flash drive not included) |
| PC SOFTWARE | Windows®-based CT Analysis software is included with purchase price |
| INTERNAL TEST RECORD STORAGE | Stores 140 test records. Each test record may contain up to 10 sets of excitation, resistance and ratio data |
| INTERNAL TEST PLAN STORAGE | Stores 128 test plans. Each test plan can store 10 excitation test voltage and current settings |
| SAFETY | Designed to meet UL 61010A-1 and CAN/CSA C22.2 No. 1010.1-92 standards |
| ENVIRONMENT | Operating: -10°C to +50°C (+15°F to +122°F); Storage: -30°C to +70°C (-22°F to +158°F) |
| HUMIDITY | 90% RH @ 40°C (104°F) non-condensing |
| ALTITUDE | 2,000 m (6,562 ft) to full safety specifications |
| CABLES | One 20-foot cable set (X1-X5), one 35-foot H cable set, current source cables, insulation test cables, power cord, ground cable. A transportation case is included with the purchase price |
| WARRANTY | One year on parts and labor |
| Specifications are valid at nominal voltage and ambient temperature of +25˚C (+77˚F). |
|
